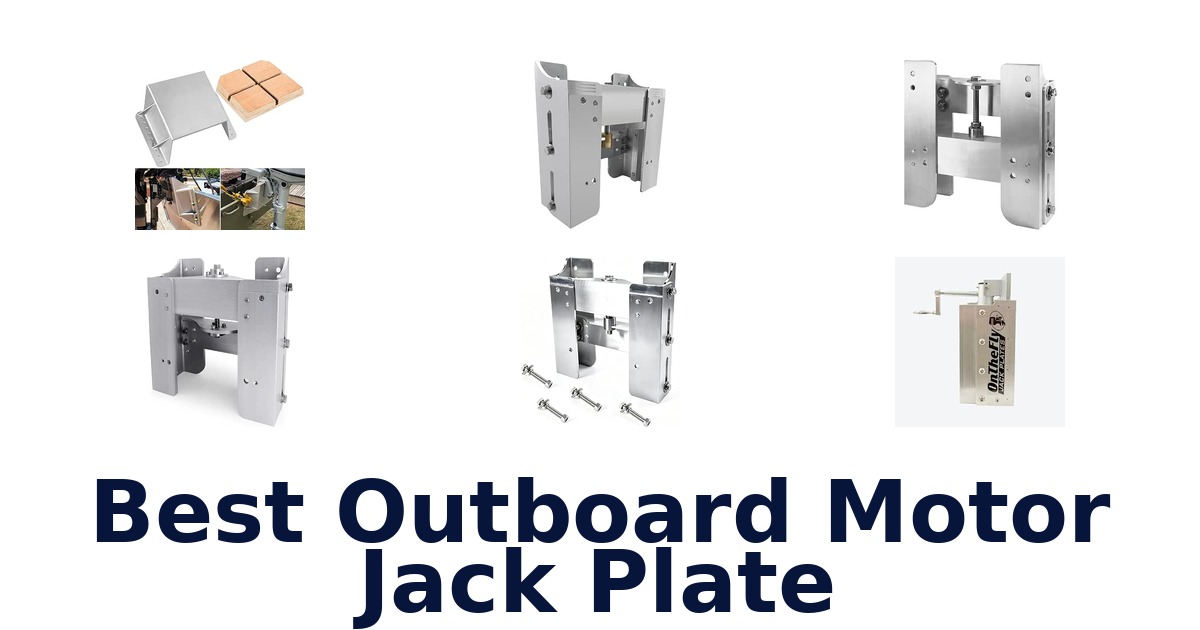

Best Outboard Motor Jack Plate for Different Boat Setups

#1 · Best Overall

1. Bob's Machine 6 in Jac Plate

• Dimensions: 6.02 x 16.73 x 13.78 in
• Weight: 23 kg
• Material: Metal
• Load Capacity: 23 kg

Best for: High-power hydraulic rigging.

Why it ranks #1: Rated for 300 HP and 625 lb, it combines a 6-inch setback with 7.5 inches total lift and an integrated hydraulic pump.

An integrated internal hydraulic pump removes the need for a separate pump mount, while this Bob's Machine plate is rated for outboards up to 300 HP and 625 pounds. Its one-piece 6-inch-setback format combines 1.5 inches of built-in lift with 6 inches of adjustable travel for motor positioning.

The internal pump can simplify rigging by keeping a separate pump mount out of the installation. For positioning, the 6-inch adjustable travel works alongside 1.5 inches of built-in lift, for 7.5 inches total lift as stated. The plate is specified for outboards up to 300 HP and 625 pounds, making those limits central to matching it to an engine. Its one-piece 6-inch setback also establishes the motor's spacing behind the transom.

Skip it if you need a clearly consistent load-capacity specification before selecting a plate; its listed capacity and motor-weight limit differ.

A boater rigging a high-power outboard who values an integrated hydraulic pump and 7.5 inches of stated total lift should consider this plate. Resolve the conflicting capacity figures before matching it to an engine.

Listed on Amazon as: Bob's Machine 6 in Jac Plate 100-106010, 6 in Setback – Rated up to 300 HP

#2 · Best Manual Lift

2. Winibo 6-inch Jack Plate

• Dimensions: 16 x 6 x 16 in
• Weight: 23 lb
• Material: Aluminum
• Load Capacity: 440 lb

Best for: Corrosion-conscious height adjustment.

Why it ranks #2: Its 6061 aluminum construction, 440 lb load capacity, and stated 4-inch adjustment suit buyers seeking a substantial adjustable plate.

T6 heat-treated 6061 aerospace aluminum is the stated material for this 6-inch Winibo plate, with corrosion resistance highlighted for harsh marine environments. Top adjustment bolts provide 4 inches of motor-height control, and the plate is described as helping mount a long-shaft engine on a short-shaft transom.

The top bolts let the operator set motor height across the stated 4-inch range, while the 6-inch plate format and short-transom application address engine positioning and setback. The listed 440-pound load capacity gives a separate weight reference for evaluating an installation. A wrench is included, supporting the adjustment workflow, and the 6061 aluminum receives T6 heat treatment. These features make the material, adjustment method, and capacity the main fit considerations in the supplied information.

Skip it if you require more than 4 inches of vertical height adjustment; the top bolts provide a stated 4-inch range.

A boater fitting a long-shaft engine to a short-shaft transom may value the 4-inch bolt adjustment and stated marine corrosion resistance. The vertical range is 4 inches, and capacity is listed at 440 pounds.

Listed on Amazon as: 6" Adjustable Outboard Motor Jack Plate (JP5600C)

#3 · Shallow-Water Pick

3. Bob's Machine Hydraulic Kick-Back Jac

• Weight: 65 lb

Best for: Shallow-water fishing rigs.

Why it ranks #3: This hydraulic 6-inch setback model provides 7.5 inches total lift and is described for duck boats, jon boats, and fishing rigs.

Hydraulic kick-back action combines a 6-inch stroke with 1.5 inches of built-in lift, providing 7.5 inches of total lift for height control. Bob's Machine identifies this 6-inch-setback plate for duck boats, jon boats, and fishing rigs, with shallow-water access and motor protection among its stated purposes.

The hydraulic stroke lets a boater adjust motor height, while the additional built-in lift contributes to the stated 7.5-inch total. That range is presented as useful for shallow-water control and access. The kick-back feature is described as raising and protecting the outboard, a practical consideration for duck boats and fishing rigs. The supplied details name a 6-inch setback and 150-HP model designation, but do not provide more specific installation dimensions.

Skip it if you need a listed motor-weight limit or detailed mounting-hole dimensions; neither is provided in the supplied specifications.

A duck-boat, jon-boat, or fishing-rig owner seeking hydraulic height adjustment for shallow-water use may find the kick-back format relevant. Check the engine and mounting requirements against details beyond those supplied here.

Listed on Amazon as: Bob's Machine 6 in Hydraulic Kick-Back Jac 100-105100, 6 in Setback, 150 HP

#4 · High Capacity

4. JPL4500 Manual Jack Plate

• Dimensions: 8 x 8 x 7 in
• Material: Aluminum
• Load Capacity: 1E+3 lb

Best for: Manual-adjustment fitment planners.

Why it ranks #4: The listing states a 1,000 lb load capacity and 6-inch manual vertical adjustment, though its feature text also inconsistently calls it hydraulic.

Precisely spaced pre-drilled mounting holes and a ratchet wrench are the practical draws of this JPL4500 manual plate. Its stated 6-inch vertical adjustment and setback capability allow engine-position changes, while the listed hole centers and vertical spacing give boat owners concrete dimensions to assess during installation planning.

The top holes are 12-7/8 inches center-to-center, the bottom holes are 9-7/8 inches center-to-center, and the vertical spacing is 8 inches; these dimensions help installers evaluate the mounting layout before work begins. The included ratchet wrench supports the manual adjustment workflow. The product description also states 6 inches of vertical adjustment with setback capability. Aluminum construction and a 1,000-pound listed load capacity round out the supplied fit and support information.

Skip it if you want hydraulic motor-height control; this JPL4500 is described as a manual-adjustment jack plate.

A boat owner planning a manual installation around the specified hole pattern can use the listed dimensions and included ratchet wrench as practical reference points. The adjustment is manual, so choose accordingly.

Listed on Amazon as: JPL4500 Adjustable 6" Manual Jack Plate for Outboard Motor | Boat Steering System Upgrade

#5

5. FQRANBO 4-inch Jack Plate

• Dimensions: 17.1 x 13.1 x 4.4 in
• Weight: 16 lb
• Material: Aluminium, Stainless Steel
• Load Capacity: 225 lb

Best for: Hole-pattern-specific manual installs.

Why it ranks #5: Rated for outboards up to 225 HP, it offers 4 inches of vertical movement and lists specific mounting-hole spacing for fit checks.

Pre-drilled mounting dimensions make this FQRANBO plate easier to evaluate against an existing installation: the top holes span 12-7/8 inches, the bottom holes 9-7/8 inches, and vertical spacing is 8 inches. It offers 4 inches of vertical movement and setback for motors up to 225 HP.

The specified hole pattern is for 1/2-inch stainless hardware, giving installers measurements to compare with the transom and engine mounting arrangement before fitting. Once installed, the plate provides 4 inches of vertical movement and 4 inches of setback, supporting motor-height and fore-aft positioning. Its aluminum and stainless-steel materials are listed alongside a 225-HP engine limit. The product is manual, so adjustment uses the plate's stated manual operation rather than a powered system.

Skip it if you need powered height adjustment; this product is specified for manual operation.

A boat owner with a mounting layout suited to the stated hole spacing can use the 4-inch vertical movement and setback for manual positioning. Keep its 225-HP limit and manual operation in mind.

Listed on Amazon as: 4" Adjustable Jack Plate Manual Transom Set Back Jack Plate for Outboard Boat Motor, Compatible with up to 225 Horsepower Outboard Motors

#6

6. GELUOXI 4-inch Jack Plate

• Material: Alloy Steel, Aluminum

Best for: Manual plates for 225-HP motors.

Why it ranks #6: This manual 4-inch setback plate is listed for engines up to 225 HP and supports mounting long-shaft motors on short-shaft transoms.

A one-piece aluminum-alloy plate with steel fasteners provides a manual, 4-inch-setback option for outboards rated up to 225 HP. GELUOXI lists it for transom mounting and describes height and setback adjustment, including use when fitting a long-shaft engine to a short-shaft transom.

The manual operation means motor positioning is handled without a powered adjustment system, while the stated 4-inch setback creates separation between the engine and transom. Its aluminum-alloy body and steel fasteners make up the listed one-piece construction. The application details identify outboard motors up to 225 HP and describe use on jon boats and similar small-to-mid-size boats. Buyers should treat those engine and boat descriptions as the stated scope when selecting a plate.

Skip it if you need a stated vertical-adjustment range; the supplied specifications give 4-inch setback but no vertical travel figure.

A small-to-mid-size boat owner seeking a manual transom plate for an outboard up to 225 HP can consider this 4-inch-setback option. The supplied details do not establish its vertical travel range.

Listed on Amazon as: Adjustable 4'' Set Back Jack Plate Manual Power Lift Transom Outboard Boat Motor Replacement for Outboard Boat Motors GELUOXI

#7

7. Pindex 4-inch Jack Plate

• Dimensions: 5.12 x 16.54 x 16 in
• Weight: 18 lb
• Material: Aluminum

Best for: Aluminum 4-inch-setback buyers.

Why it ranks #7: Its 4-inch adjustable format and stated 225 HP maximum fit buyers seeking a manual plate, though detailed specifications are limited.

A compact 4-inch adjustable manual format is the defining detail in the Pindex product title, which also specifies a 225-HP maximum. Its listed aluminum construction and 18-pound weight help frame storage and handling considerations, while the supplied information identifies it as an outboard motor jack plate.

The 4-inch adjustment and manual operation, as stated in the title, suit buyers seeking a straightforward positioning plate rather than a hydraulic system. Aluminum is the listed material, and the 18-pound product weight offers a concrete handling reference during installation planning. The title gives a 225-HP maximum, but the supplied specifications do not provide mounting-hole dimensions or further adjustment details. Those gaps limit how specifically the fit can be assessed from the available product facts.

Skip it if you need mounting-hole spacing or detailed installation dimensions before choosing a plate; those figures are not supplied here.

A buyer seeking an aluminum manual plate in the stated 4-inch and 225-HP class can use the available details as a starting point. The missing hole dimensions limit fit assessment.

Listed on Amazon as: Pindex 4" Adjustable Outboard Motor Jack Plate Manual for Boat Steering System Weighs 24 lbs 225 Maximum Horsepower

#8 · Small-Engine Pick

8. Camoo MJ-1-DP Jack Plate

• Dimensions: 16.61 x 12.79 x 4 in
• Weight: 5.24 kg
• Material: Cast Aluminum, Marine Grade Transom Block
• Load Capacity: 1.5E+2 lb

Best for: Small-boat long-shaft conversions.

Why it ranks #8: Designed for clamp-on outboards up to 35 HP, it includes a pre-cut marine-grade wooden block for skiffs, aluminum boats, and inflatables.

A pre-cut, pre-grooved marine-grade wooden block comes with this 4-inch-setback cast-aluminum plate, giving clamp-on motors a shaped mounting surface. It supports outboards up to 35 HP and is intended for skiffs, aluminum boats, and inflatables, including setups that pair a long-shaft motor with a shorter-shaft transom.

The 4-inch offset places the motor farther from the transom, while the included grooved block is specified to fit the plate and help make the motor installation firm. That combination addresses both spacing and mounting on a short-transom boat using a long-shaft engine. Its stated 35-HP ceiling and clamp-on application narrow the intended setup; the listed compatible craft are skiffs, aluminum boats, and inflatables. Cast aluminum supplies the plate material.

Skip it if you need more than 4 inches of setback or an engine above 35 HP; this plate is specified for clamp-on motors only.

A skiff, aluminum-boat, or inflatable owner fitting a clamp-on motor up to 35 HP gets a supplied mounting block and 4-inch offset. Keep the horsepower and clamp-on requirements in view.

Listed on Amazon as: MJ-1-DP 4'' Setback Small Engine Jack Plate for Outboard Motors Up to 35HP

#9

9. QNCKJZV MJ-1-DP Jack Plate

• Dimensions: 16.61 x 12.79 x 4 in
• Weight: 5.24 kg
• Material: Cast Aluminum, Marine Grade Transom Block
• Load Capacity: 150 lb

Best for: Clamp-on motor transom conversions.

Why it ranks #9: Its 35 HP limit and included pre-cut wooden block suit small clamp-on motors, but it substantially overlaps the Camoo configuration.

The included pre-cut, pre-grooved wooden block gives this 4-inch-setback cast-aluminum plate a ready-matched mounting component. QNCKJZV lists it for clamp-on outboards up to 35 HP and describes using a long-shaft motor on a shorter-shaft transom, particularly on skiffs, aluminum boats, and inflatables.

The offset moves the motor 4 inches from the transom, while the supplied marine-grade block is shaped for the plate and supports a firm installation, according to the product details. Together, those features address the spacing and mounting needs of the described long-shaft-to-short-transom conversion. The stated 35-HP maximum and clamp-on mounting are important limits. The compatible craft listed are skiffs, aluminum boats, and inflatables; the plate is cast aluminum.

Skip it if you need a plate for an engine above 35 HP or a mounting style other than clamp-on; those are outside its stated application.

A skiff, aluminum-boat, or inflatable owner converting a short transom for a clamp-on long-shaft motor up to 35 HP gets the supplied block and 4-inch offset. Check that application boundary.

Listed on Amazon as: MJ-1-DP 4'' Setback Jack Plate for Outboard Motors Up to 35HP – Manual Lift System with Wooden Mounting Block Included – Enhance Engine Performance & Distance from Transom

#10

10. On The Fly Standard Jack Plate

• Dimensions: 15 x 15 x 6 in
• Weight: 23 lb
• Material: Aluminum
• Load Capacity: 150 lb

Best for: On-water manual adjustments.

Why it ranks #10: It supports motors up to 30 HP without factory trim and tilt, making its stated engine fit narrower than the other options here.

On-the-water adjustment is the central convenience of this On The Fly manual plate: its description says motor position can be changed at any time, with adjustments made in seconds. It supports motors up to 30 HP without factory trim and tilt, and uses high-grade marine aluminum.

The stated ability to adjust while on the water lets operators respond to changing conditions without waiting until they return to shore. The plate is intended for outboards up to 30 HP that lack factory trim and tilt, defining a specific small-motor use case. Its manual operation keeps the adjustment method straightforward, and the supplied additional facts identify a 5-inch distance between the transom bracket and motor slide, with variation by mounting position.

Skip it if you run an outboard above 30 HP or one with factory trim and tilt; this plate's stated application is narrower.

A small-boat operator with an outboard up to 30 HP and no factory trim and tilt may value the ability to reposition the motor on the water. Its stated horsepower and trim requirements define the fit.

Listed on Amazon as: Adjustable Manual Boat Jack Plate – High Grade Marine Aluminum – Standard Unit – for up to 30hp Outboard Motors – by On The Fly Jack Plates
