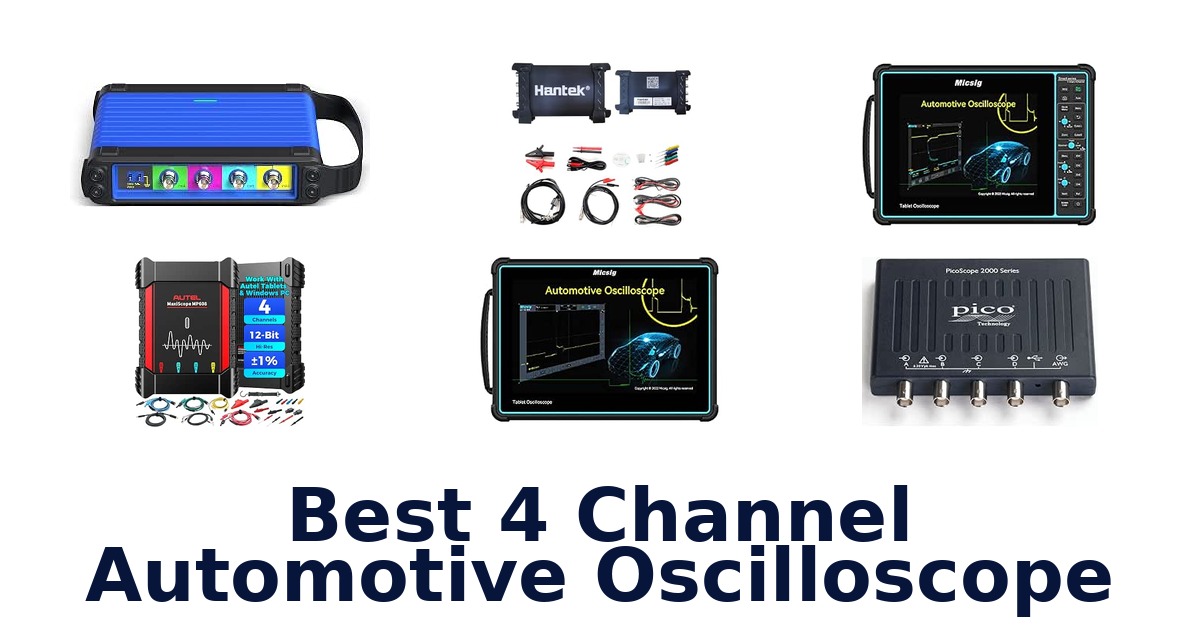

Best 4 Channel Automotive Oscilloscope for Vehicle Diagnostics

#1 · Best Overall

1. Autel MaxiScope MP608

• Weight: 1.2 lb

Best for: Autel Scanner Owners.

Why it ranks #1: Its four-channel automotive design, 20 MHz bandwidth, maximum 80 MS/s sampling rate, and supplied probes and leads suit vehicle waveform work.

Four-channel simultaneous capture pairs with 20 MHz bandwidth and up to 80 MS/s sampling, giving technicians a way to inspect multiple automotive signals together. The MP608 connects to an Autel scanner for waveform diagnostics or runs standalone on Windows, so it can fit an existing Autel workflow or a PC-based setup.

Its four-channel capture helps compare related signals in one acquisition, while the listed LIN and CAN support targets vehicle network diagnostics. The USB portable scope can connect to an Autel scanner or run on Windows, allowing owners of supported Autel equipment to add waveform work without buying a new kit. Included back-pinning probes, test leads, clips, and attenuators provide connection options for different measurement points; the compact 1.2-pound unit is also easier to move between work areas.

Skip it if you need a self-contained tablet display; the Micsig ATO1004A has a 10.1-inch touchscreen and integrated automotive diagnostics.

Autel scanner owners seeking four-channel waveform work, including LIN and CAN checks, are the clearest fit. Consider whether your workflow has a compatible scanner or Windows PC, since this portable scope relies on one of those hosts.

Listed on Amazon as: Autel MP608 4-Channel Automotive Oscilloscope, USB Portable Digital Scope

#2 · Best Memory Depth

2. TOPDON Phoenix Scope

Best for: Waveform Replay Technicians.

Why it ranks #2: Automotive electronics and wiring diagnosis, 50M memory depth, waveform replay, and one-tap storage make it a strong shop-focused option.

One-tap waveform storage lets the TOPDON Phoenix Scope save a tested signal quickly for later replay and fault analysis. Its four channels, memory depth up to 50M, and slowed waveform display support comparing circuit behavior during automotive troubleshooting, while edge and pulse-width triggers help technicians target specific signal events.

The scope can capture circuit signals and display waveforms at a slower speed for simultaneous observation and analysis, helping users inspect events that are difficult to follow at full speed. Saving with one tap reduces the stated storage workflow to a single action, and recorded waveforms can be replayed for further fault analysis. Edge and pulse-width triggers, plus quick trigger-source switching, provide ways to focus captures; independently draggable horizontal and vertical cursors support direct waveform measurements.

Skip it if you require a specified high sampling rate; the Hantek 6074BE lists 1GSa/s real-time sampling and 70 MHz bandwidth.

The Phoenix Scope is a good fit for technicians who need to record, revisit, and analyze automotive circuit waveforms with quick storage and cursor tools. Buyers choosing by bandwidth or sampling rate should note those figures are not supplied here.

Listed on Amazon as: TOPDON Phoenix Scope, 4 Channel Oscilloscope with Accessories

#3 · Best Tablet Pairing

3. Autel MP608 Waveform Tester

Best for: Precision Autel Diagnostics.

Why it ranks #3: It offers four-channel capture, 12-bit resolution, ±1% measurement accuracy, and listed compatibility with selected MaxiSys tablets and Windows PCs.

Twelve-bit resolution and ±1% measurement accuracy headline this four-channel MP608, enabling detailed signal capture for automotive electrical, electronic, and network diagnosis. Advanced triggering, customizable math channels, serial bus decoding, and guided test procedures extend the workflow beyond viewing raw waveforms, while Windows PC and compatible MaxiSYS tablet support provide host choices.

Serial bus decoding and guided procedures can help technicians move from signal capture toward interpreting vehicle network faults, while customizable math channels allow derived signal views within the scope workflow. Its 12-bit resolution and ±1% stated measurement accuracy support close inspection of electrical signals. The USB-powered unit works with Windows PCs and a list of compatible MaxiSYS tablets, including MS906 MAX and MS909S2, so buyers should match the host to their existing diagnostic setup before selecting it.

Skip it if you want a standalone touchscreen instrument; the Micsig ATO1004A includes a 10.1-inch display and up to five hours of battery operation.

This MP608 suits technicians who want measurement detail, bus decoding, and guided tests through a Windows PC or compatible MaxiSYS tablet. Confirm that your existing host appears among the listed compatible models before planning the diagnostic workflow.

Listed on Amazon as: Autel MaxiScope MP608 4-Channel Automotive Oscilloscope Waveform Tester

#4 · Best PC Diagnostics

4. Hantek 6074BE

Best for: Windows Automotive Scope Users.

Why it ranks #4: This four-channel USB scope lists 70 MHz bandwidth, 1 GSa/s sampling, Windows compatibility, and automotive inspection of more than 80 items.

More than 80 automotive inspection items pair with four channels and 70 MHz bandwidth in the Hantek 6074BE, covering areas including ignition, sensors, engine, startup, and charging. Its 1GSa/s real-time sampling and Windows PC connection offer a portable diagnostic workflow, with trigger modes and broad vertical ranges supporting varied signal checks.

The listed automotive inspection coverage gives technicians a menu of vehicle-focused checks, while four-channel capture allows multiple signals to be viewed together. A 1GSa/s real-time sample rate and 70 MHz bandwidth support waveform acquisition, and the 2mV-to-10V/div range at a x1 probe provides input sensitivity for smaller signals. Edge, pulse, video, and alternative trigger modes offer capture choices. Windows 7, 8, and 10 support suits PC-based use, including portable computers and tablets.

Skip it if you need listed Windows 11 support; the Hantek 6254BE supports Windows 11 along with Windows 10, 8, and 7.

The 6074BE fits technicians who want PC-based automotive tests and four-channel signal capture in a portable setup. Its stated compatibility covers Windows 7, 8, and 10, so check that boundary against the computers used in the shop.

Listed on Amazon as: Hantek 6074BE Digital Oscilloscope 70MHz 1GSa/s 4CH USB Virtual Oscilloscope Diagnostic Tool

#5 · Best Handheld Display

5. Micsig SATO1004

Best for: Portable Touchscreen Workflow.

Why it ranks #5: The four-channel, 100 MHz model has an 8-inch touchscreen and integrated automotive diagnostic software for users wanting an onboard display.

An 8-inch touchscreen and Android operating system make the Micsig SATO1004 a self-contained-feeling alternative to PC-hosted scopes, with automotive diagnostic software integrated into the display. Its four channels and 100 MHz configuration support multi-signal inspection, while physical controls and smartphone-app remote operation offer different ways to manage measurements.

The physical button panel complements touchscreen operation, giving users a direct control option while working through automotive diagnostic software. A faster CPU and optimized software are specified as upgrades intended to improve the interface experience. When network conditions permit, a smartphone app can remotely display real-time waveforms and data, which can help a technician observe measurements away from the instrument. The listed 7.5-volt minimum operating voltage is relevant when planning where and how to power the unit.

Skip it if you need a longer listed battery runtime; the Micsig ATO1004A specifies up to five hours of continuous operation.

The SATO1004 fits technicians who value an 8-inch touchscreen, physical controls, and remote smartphone viewing for automotive signal work. Its remote workflow depends on stable Wi-Fi, and the supplied facts do not specify a battery runtime.

Listed on Amazon as: Micsig Oscilloscope SATO1004, Portable Handheld Automotive Oscilloscope

#6

6. Micsig ATO1004A

Best for: Standalone Tablet Diagnostics.

Why it ranks #6: Its four-channel 100 MHz tablet format includes a 10.1-inch touchscreen, up to 110Mpts storage depth, and listed 12V and 24V tests.

A 10.1-inch touchscreen, 110Mpts storage depth, and up to five hours of battery operation make the Micsig ATO1004A a portable tablet-style scope for automotive work. Its four-channel, 100 MHz configuration and integrated diagnostic software support signal checks, while listed 12V and 24V charging and starting tests address vehicle power systems.

The integrated display and touch interface let users work directly on the tablet rather than relying on a separate PC screen. Waveforms, pictures, and videos can be stored with up to 110Mpts depth, supporting later review, and the listed battery runtime of up to five hours enables untethered sessions, varying by model and power use. Wi-Fi, Type-C, LAN, HDMI, and USB Host provide connection options; specified tests include charging ripple and cranking current for 12V and 24V systems.

Skip it if you need remote smartphone waveform viewing specifically; the Micsig SATO1004 lists smartphone-app monitoring over a stable Wi-Fi connection.

The ATO1004A suits technicians seeking a tablet-style automotive scope for 12V or 24V charging and starting checks without a continuous power connection. Its stated runtime varies with model and power consumption, so plan longer sessions accordingly.

Listed on Amazon as: Micsig Digital Automotive Tablet Oscilloscope, 4 Channels 10.1-Inch

#7

7. Hantek 6254BE

• Weight: 2.98 lb

Best for: High-Bandwidth Automotive PC Scope.

Why it ranks #7: The four-channel USB scope lists 250 MHz bandwidth, 1 GSa/s sampling, more than 80 automotive measurement functions, and over 20 automatic measurements.

A 250 MHz bandwidth rating sets the Hantek 6254BE apart among these PC-based automotive scopes, paired with four channels and 1GSa/s real-time sampling. More than 80 automotive measurement functions and over 20 automatic measurements support vehicle diagnosis, while PASS/FAIL checking adds a way to assess selected results.

The combination of four-channel capture and 250 MHz bandwidth supports observing several automotive signals while handling higher-frequency waveforms. Its 1GSa/s real-time sampling complements that bandwidth for acquisition, and more than 80 automotive measurement functions provide vehicle-focused tools. Over 20 automatic measurements can reduce manual calculation steps, while PASS/FAIL checking offers a direct result check. The USB PC format supports Windows 7, 8, 10, and 11, making host compatibility a practical part of setup planning.

Skip it if you prioritize a lighter listed PC unit; the Hantek 1008C weighs 1.4 pounds and offers eight channels.

The 6254BE suits automotive technicians who want high listed bandwidth, automated measurements, and PASS/FAIL checks on a Windows PC. Its 2.98-pound weight is worth considering for frequent transport between vehicles or work areas.

Listed on Amazon as: Hantek 6254BE Digital Oscilloscope 250MHz Bandwidth Automotive Oscilloscope

#8

8. Hantek 1008C

• Weight: 1.4 lb

Best for: Multi-Circuit PC Diagnostics.

Why it ranks #8: It has eight analog channels and more than 80 automotive diagnostic functions, but its channel count exceeds the requested four-channel category.

Eight analog channels and more than 80 automotive diagnostic functions give the Hantek 1008C broad coverage for ignition, sensors, bus detection, actuators, and starting or charging systems. The PC USB format combines vehicle diagnostics, general oscilloscope functions, and a programmable signal generator, making it suitable for users who want several test roles in one setup.

Eight channels let users inspect more signals in parallel than a four-channel scope, while the included automotive functions cover systems such as ignition, sensors, bus detection, and starting and charging circuits. General-purpose oscilloscope operation and a programmable signal generator add non-diagnostic tasks to the same PC-based device. The supplied accessories include HT30A, HT201, HT25, HT307, and eight cables, supporting a kit-based setup; its software supports Windows 7, 8, and 10, not macOS.

Skip it if you need a listed Windows 11 workflow; the Hantek 6254BE specifies Windows 11 support and four-channel operation.

This Hantek fits technicians who need eight channels and a broad mix of vehicle tests, scope functions, and signal generation through a PC. Its operating-system boundary is important: the listed software support stops at Windows 10.

Listed on Amazon as: Hantek1008C+HT201+HT30A+HT307 PC USB 8CH Automotive Diagnostic Oscilloscope

#9

9. PicoScope 2405A

• Weight: 1.48 lb

Best for: Four-Channel PC Scope Users.

Why it ranks #9: This four-channel PC oscilloscope lists 25 MHz bandwidth, 500 MS/s sampling, and 48 MS buffer memory, but supplied data gives no automotive functions.

A 48 MS buffer and 500 MS/s sampling rate distinguish the PicoScope 2405A, supporting waveform capture and review on a four-channel, 25 MHz PC oscilloscope. Its calculated 14 ns rise time provides another signal specification for electronics work, while included probes help users connect the scope to circuits without sourcing basic probes separately.

Four channels allow several signals to be viewed together, useful when comparing related circuit behavior during troubleshooting. The 500 MS/s sampling rate and 48 MS buffer pair capture speed with room to retain waveform data for review, while 25 MHz bandwidth defines the scope's signal range. The included probes simplify initial connection, and the PC oscilloscope format fits a computer-based bench workflow. The supplied information identifies general oscilloscope specifications, not dedicated automotive test functions.

Skip it if you need named automotive tests such as ignition and sensor checks; the Hantek 6074BE lists more than 80 inspection items.

The 2405A suits buyers seeking a compact, four-channel PC oscilloscope for waveform capture and general circuit work. Automotive specialists should consider whether its listed general scope features meet their needs without specified vehicle-test workflows.

Listed on Amazon as: PicoScope 2405A 25 MHz 4 Channel Oscilloscope

#10

10. UNI-T UPO2074HD

• Weight: 12 lb

Best for: High-Resolution Bench Analysis.

Why it ranks #10: Its four channels, 70 MHz bandwidth, 12-bit resolution, and 2.5 GSa/s rate are substantial, but the supplied description targets general signal analysis.

A 12-bit converter with 4,096 quantization levels gives the UNI-T UPO2074HD fine signal detail for sensor analysis and power validation. Four channels, 70 MHz bandwidth, and a 2.5 GSa/s sample rate support simultaneous signal inspection, while 100 Mpts of memory and a large touchscreen target deeper bench analysis and waveform review.

The 100 Mpts memory depth can retain longer acquisitions for later inspection, while the 2.5 GSa/s sample rate supports capturing fast-changing signal detail. Its 12-bit resolution and 4,096 quantization levels are specified for precise signal viewing, and 256-color intensity grading can make glitches and anomalies more visible. Sequence mode reaches up to 1,000,000 waveforms per second, giving users a way to examine intermittent events; the supplied details emphasize general signal analysis rather than vehicle-specific test procedures.

Skip it if you want listed vehicle-specific diagnostic procedures; the Hantek 6074BE specifies over 80 automotive inspection items.

This UNI-T suits buyers prioritizing detailed bench waveform analysis, deep memory, and fast capture. Automotive technicians should weigh its general signal-analysis emphasis against the vehicle-specific functions listed on dedicated diagnostic scopes.

Listed on Amazon as: UNI-T UPO2074HD Oscilloscope – 70MHz 4 Channel, 12-Bit, 2.5GSa/s, 10.1" Touchscreen
